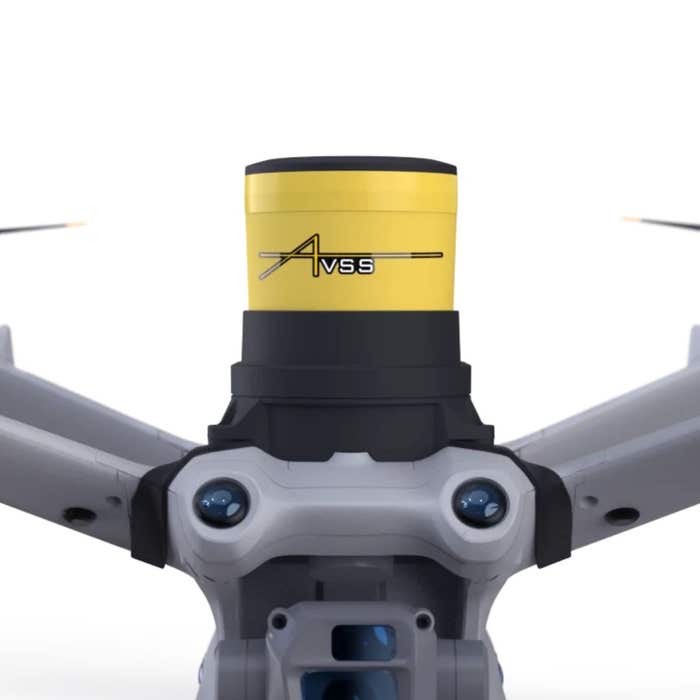

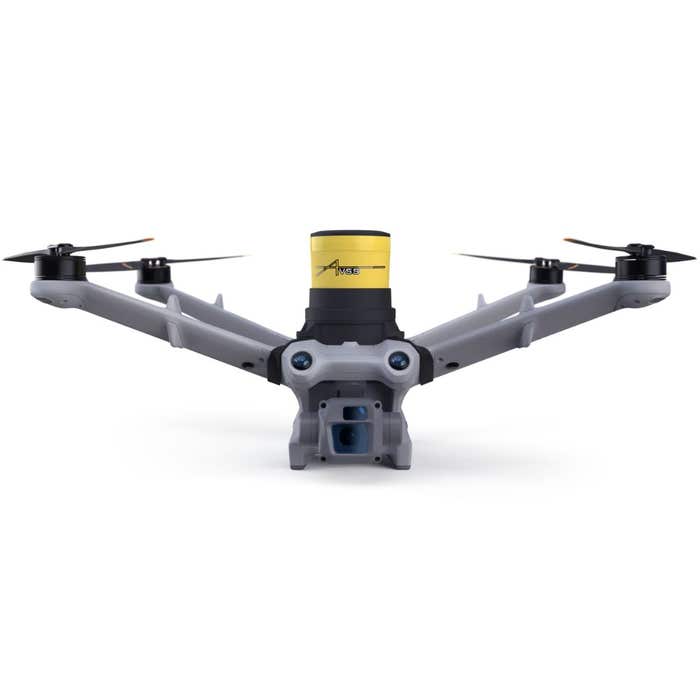

AVSS Drone Parachute Recovery System for DJI Dock 2 and Matrice 3D/3TD: Integrated Flight Termination and Controlled Descent for Automated Drone Operations

The AVSS Drone Parachute Recovery System for DJI Dock 2 and Matrice 3D/3TD (AVSS PRS-M3DT) is a fully integrated parachute recovery and flight termination system designed for DJI Matrice 3D and 3TD aircraft operating within DJI Dock 2 ecosystems.

It provides an automated safety layer that detects critical flight failures and initiates a controlled descent sequence, reducing impact energy and mitigating ground risk. Built for autonomous and remote deployments, it connects directly through the DJI Payload SDK without interfering with onboard sensors or mission-critical systems.

Developed for enterprise deployments, the system combines autonomous triggering, manual activation, and onboard flight termination into a compact module that runs continuously during flight. It supports compliance-driven operations while maintaining system simplicity, making it a practical addition for organizations scaling automated drone programs in regulated environments.

Key Features and Benefits

Automatic deployment: triggers parachute release in under 0.5 seconds during failures
Rapid activation: sub-100 millisecond release ensures immediate emergency response
Flight termination: integrated system disables motors prior to parachute deployment sequence
Autonomous triggering: onboard sensors detect abnormal flight behavior and initiate deployment
Manual deployment: operator-triggered activation available through DJI PSDK interface controls
Independent power: internal battery supports deployment even during total power loss
Lightweight structure: 145-gram system minimizes impact on aircraft performance and endurance
Flight logging: onboard data storage supports compliance, diagnostics, and operational review
Secure integration: mounting system ensures stable attachment without sensor interference

Built for Scalable and Remote Drone Operations

The AVSS PRS-M3DT supports automated and remotely managed drone fleets by delivering a predictable emergency response profile. With a controlled descent rate of 4.34 m/s and average impact energy of 14.8 joules, it helps operators reduce operational risk in dense or sensitive environments.

The system arms automatically at approximately 34 meters and continuously evaluates flight conditions using onboard sensors. In the event of a failure, propulsion is terminated before parachute deployment, ensuring a stable descent. This makes it particularly effective for Dock 2 deployments where immediate pilot intervention is limited or unavailable.

Compatibility and System Integration

Aircraft support: purpose-built for DJI Matrice 3D and Matrice 3TD drones
Dock ecosystem: designed for seamless integration with DJI Dock 2 operations
PSDK connection: connects via USB-C interface for system-level communication integration
Remote platforms: compatible with DJI FlightHub 2 for centralized fleet management
Software integration: supports FlytBase for automated and remote mission workflows
Control interface: integrates with DJI transmitters for manual deployment capability

Applications and Use Cases

Autonomous operations: enhances safety for remotely deployed DJI Dock 2 missions
Urban inspections: reduces risk during flights over populated or infrastructure-dense areas
Utility monitoring: supports compliant operations near powerlines and critical infrastructure
Public safety missions: enables safer deployments in emergency and response environments
Industrial inspections: minimizes impact risk in complex or hazardous operational sites
Regulatory operations: supports parachute system requirements for compliant flight programs

The PRS-M3DT is designed to reduce operational risk in automated drone environments. It provides a consistent and measurable safety response that supports both compliance and real-world deployment needs.

With Dronefly, you gain more than just hardware—you gain a deployment-ready safety solution backed by real-world integration expertise. Our team helps ensure your system is configured for your specific workflow so you can deploy with confidence. Order the AVSS PRS-M3DT from Dronefly and strengthen your automated drone operations.

Shop / Drone Accessories / Drone Parachute Systems

AVSS Drone Parachute Recovery System for DJI Dock 2 and Matrice 3D/3TD

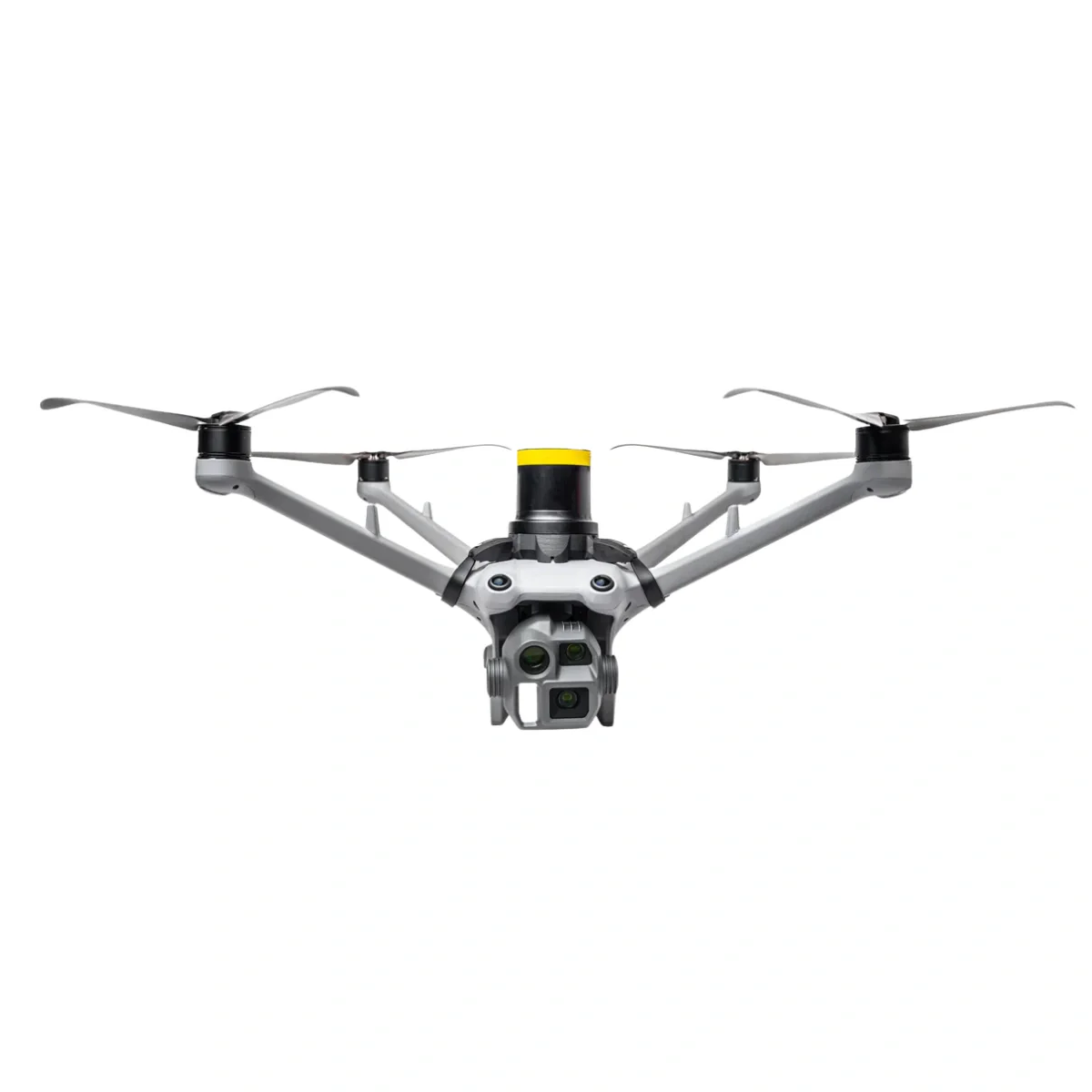

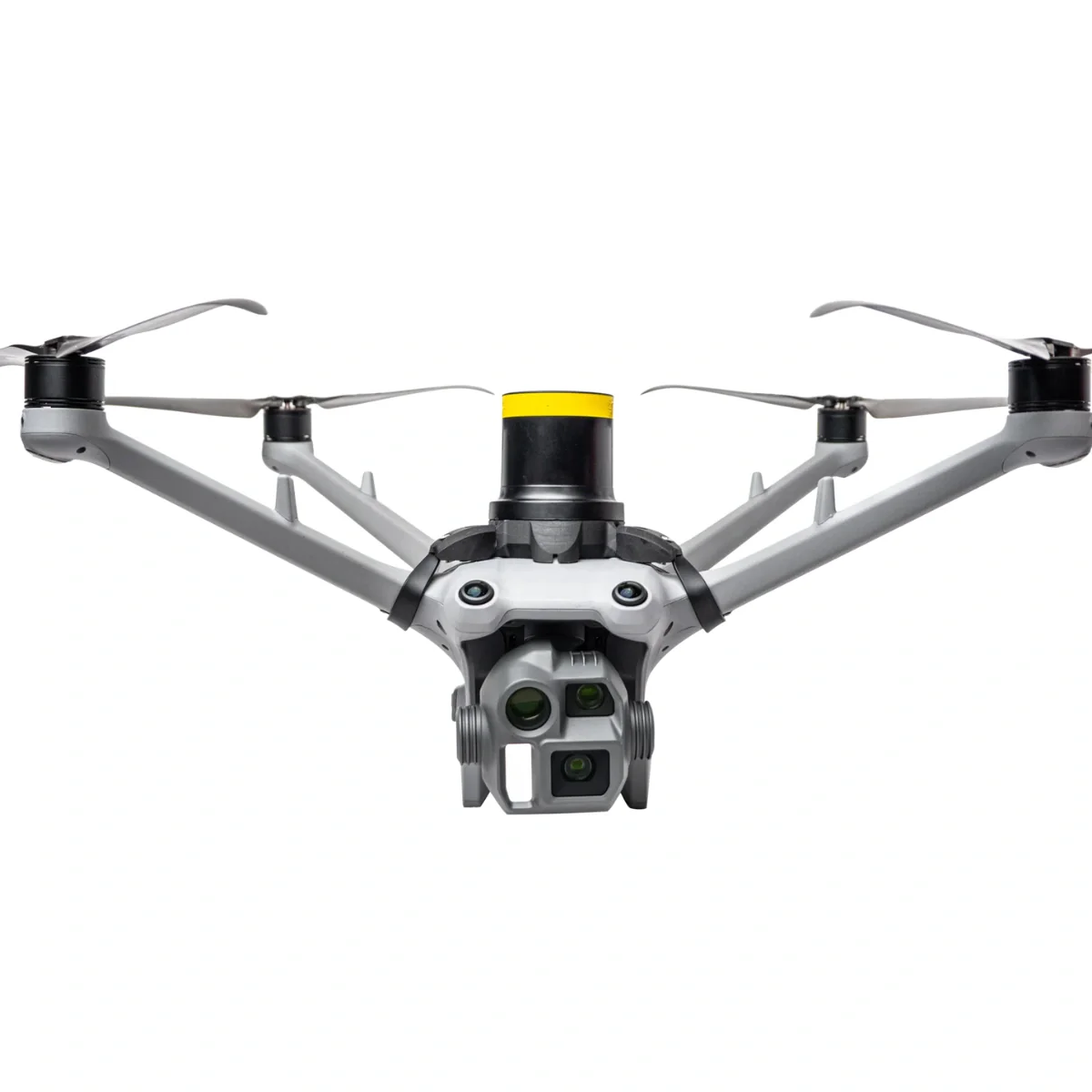

AVSS Drone Parachute Recovery System for DJI Dock 3 and Matrice 4D/4TD
