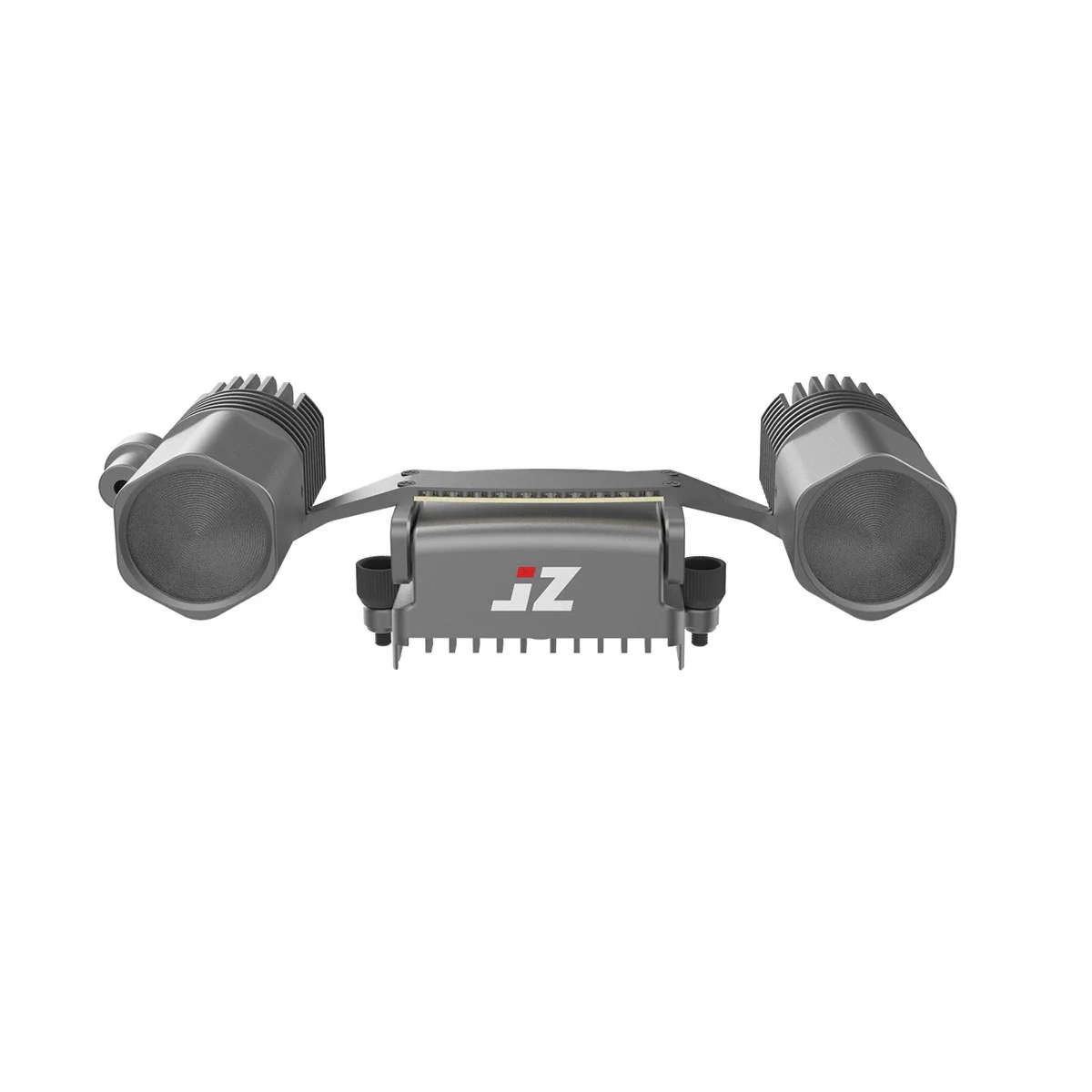

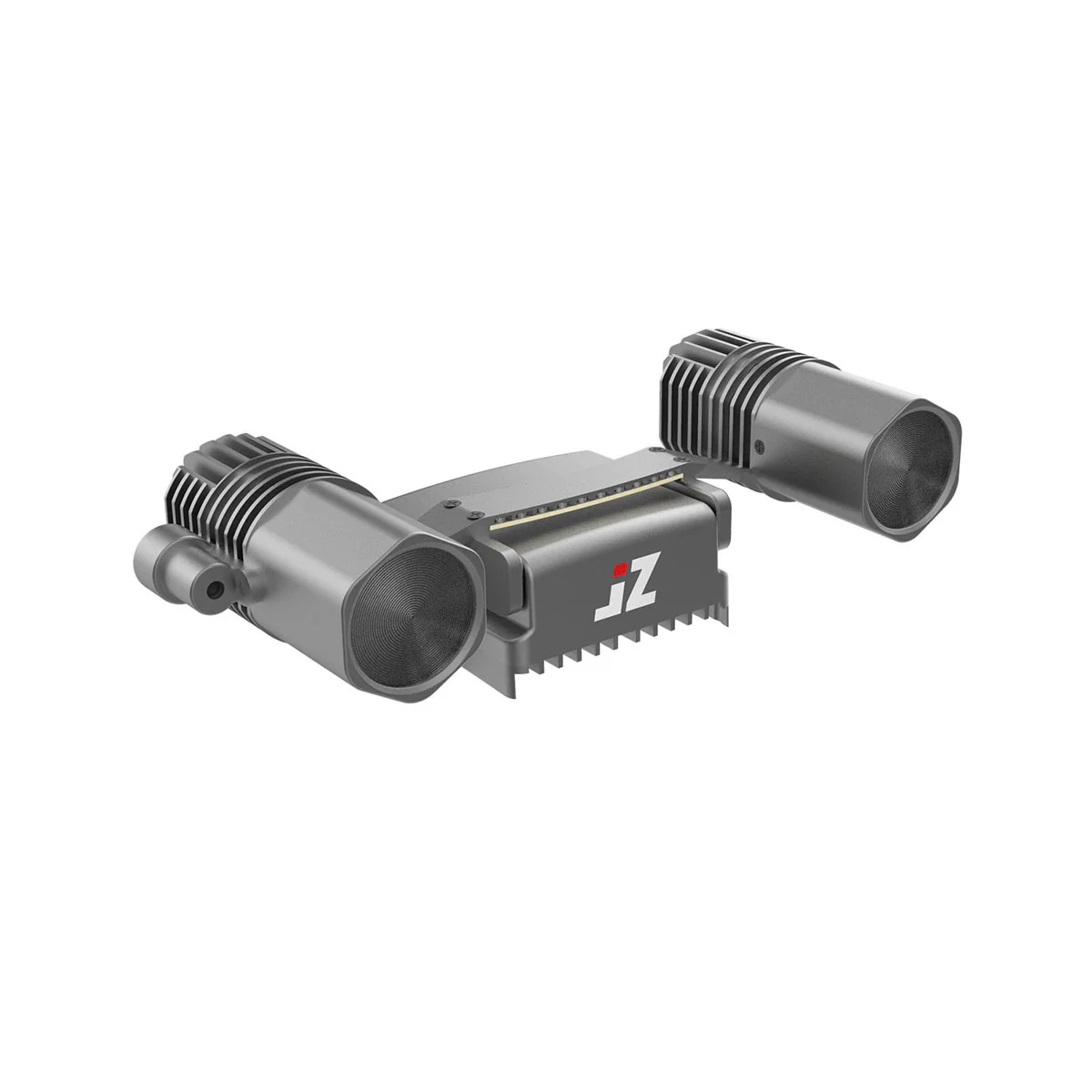

JZ Drones T30 V2 Matrix Lamp for DJI Matrice 4T/4E: Focused Aerial Illumination System for Low-Light Operations

The JZ Drones T30 V2 Matrix Lamp is a DJI SDK-compatible illumination payload designed for reliable aerial lighting in low-light environments using DJI Matrice 4E and Matrice 4T platforms. It delivers 40 W of focused output through a 14° beam, providing up to 24 lux at 50 meters (164.04 ft) for effective scene visibility.

The system integrates with DJI Pilot 2 for real-time brightness adjustment, flash control, and gimbal positioning. With a single-axis stabilized gimbal linked to the camera, it maintains aligned and stable lighting direction during flight, supporting inspection, public safety, and nighttime operations.

Key Features and Benefits

• 40W output: provides high-intensity illumination for night operations
• 14° beam angle: delivers focused lighting for targeted area coverage
• 24 lux at 50 m: supports strong close-range illumination performance
• 5 lux at 100 m: enables mid-range visibility during aerial operations
• 2.5 lux at 150 m: supports extended-range lighting performance
• Single-axis gimbal: stabilizes lighting and aligns with camera movement
• Gimbal control: supports 0° to -90° adjustable tilt range
• Pilot 2 integration: enables real-time lighting control and adjustments
• Flash mode: supports adjustable burst brightness and flash frequency

Applications and Use Cases

• Search operations: illuminates terrain during nighttime search missions
• Public safety: provides aerial lighting for emergency response scenarios
• Inspection work: enhances visibility for infrastructure inspection in darkness
• Fire response: supports visibility during nighttime firefighting operations
• Security patrol: enables illumination for surveillance and monitoring tasks
• Disaster response: improves visibility during rescue and recovery missions

The T30 V2 is designed for operators requiring consistent and controlled aerial illumination across mission types. Its focused beam, stabilized gimbal, and real-time control enable reliable visibility in demanding environments.

When you purchase from Dronefly, you gain a UAV solutions partner focused on long-term operational success. From integration to deployment, Dronefly supports your mission—order the T30 V2 Matrix Lamp from Dronefly today.
