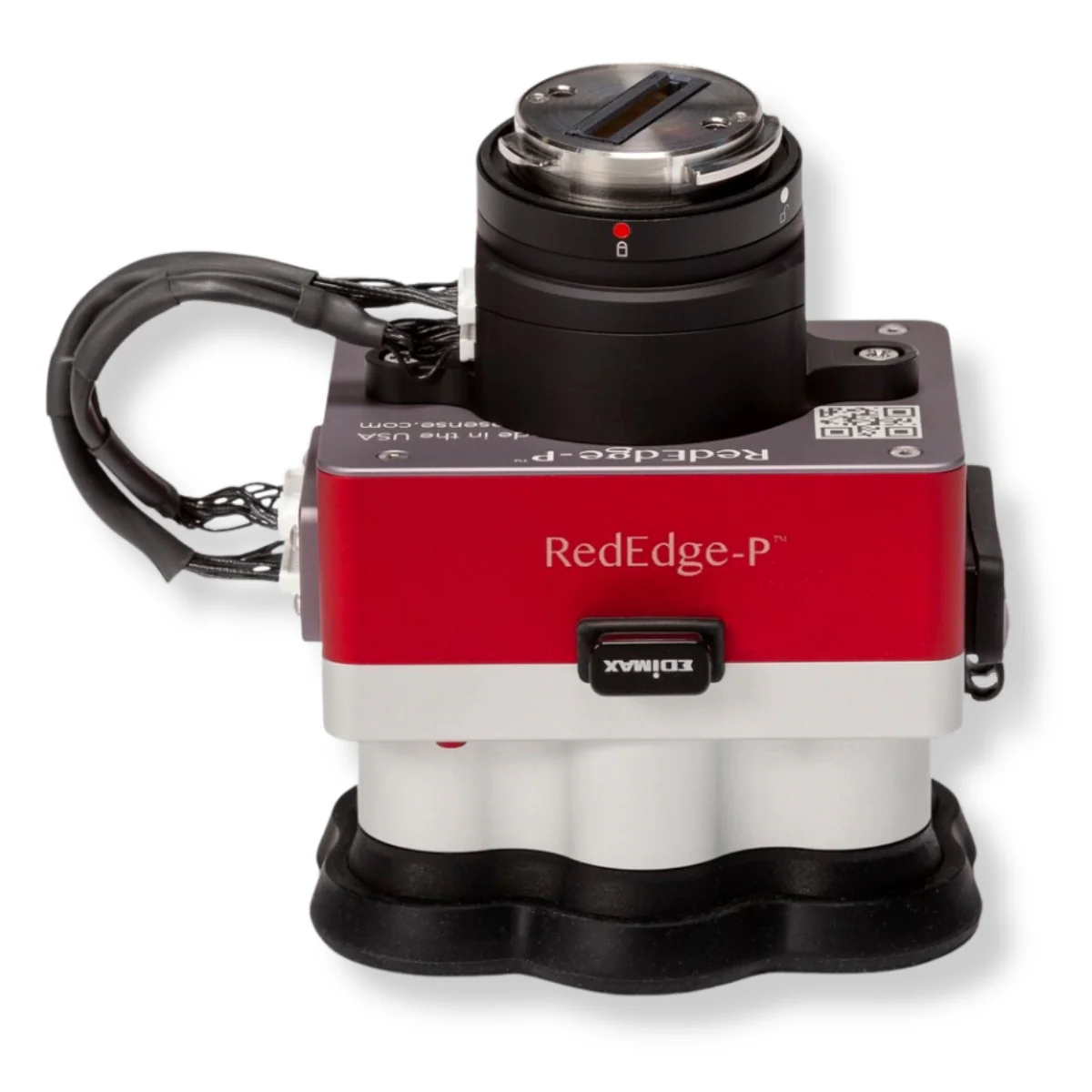

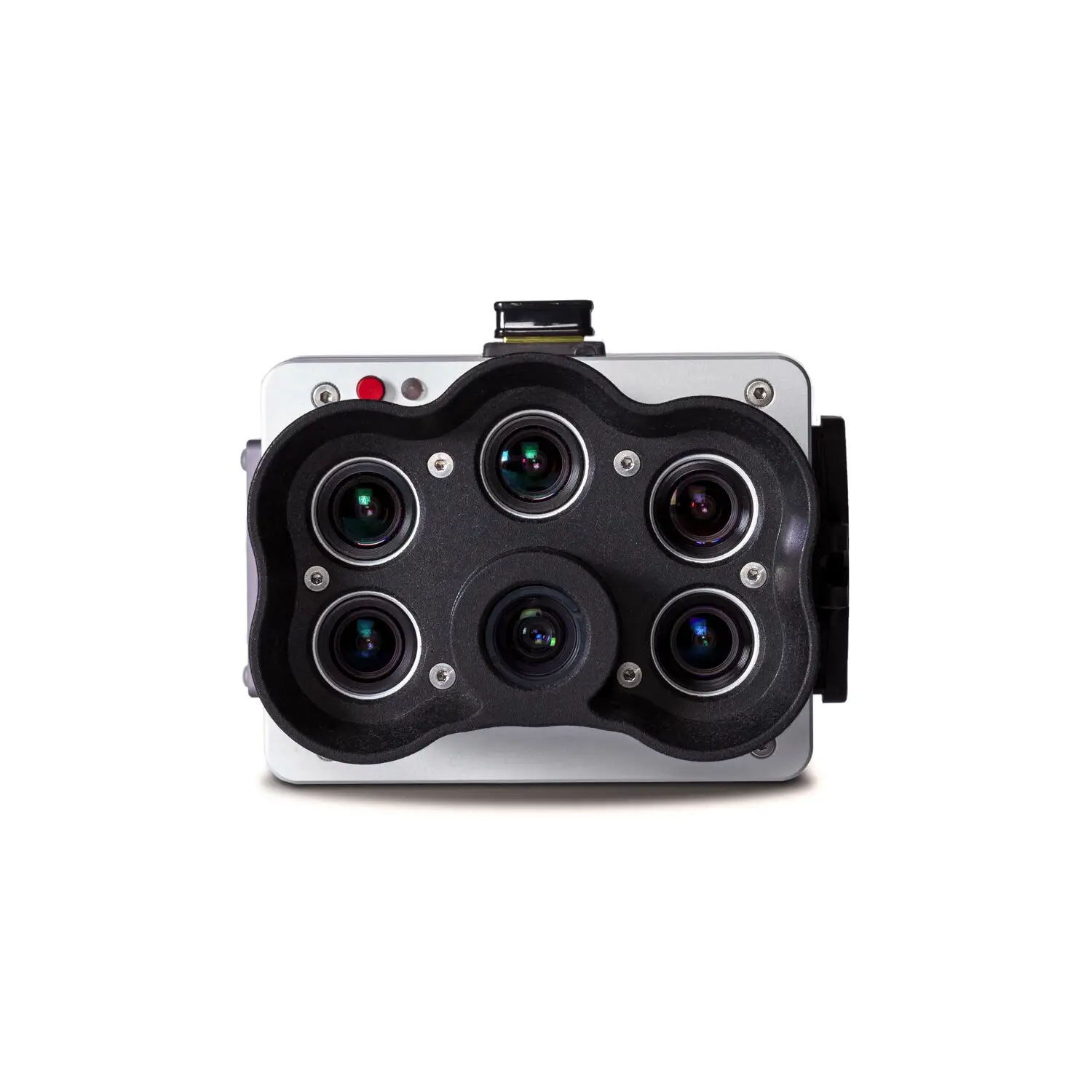

MicaSense RedEdge-P with DJI M300/M350 SkyPort Kit
MicaSense RedEdge-P with DJI SkyPort Kit: Scalable multispectral sensing with SkyPort integration for DJI enterprise UAVs
The MicaSense RedEdge-P with DJI SkyPort Kit is an enterprise-ready multispectral imaging bundle built for DJI Matrice 300 RTK and Matrice 350 RTK aircraft. It pairs the RedEdge-P modular multispectral camera with a dedicated SkyPort adapter, enabling secure, direct aircraft integration. Designed for repeatable surveys and advanced spectral analysis, the system delivers synchronized multispectral, panchromatic, and RGB imagery with strong radiometric consistency, supporting professional agriculture, environmental monitoring, and research missions at scale.
Multispectral system design and synchronized capture
- Multispectral resolution: 1456 × 1088 pixels per band
- Panchromatic resolution: 2464 × 2056 pixels output
- RGB channel: 5.1 MP global shutter imaging
- Five base spectral bands included
- Expandable architecture: Pair sensors for up to ten bands
- Narrowband optics: Optimized for vegetation analysis accuracy
- Synchronized capture across all channels
- CFexpress media for high-speed data storage
Spatial performance for large-area surveys
RedEdge-P provides efficient spatial coverage while preserving spectral integrity. At 120 m AGL, multispectral imagery delivers approximately 7.7 cm per pixel resolution, with panchromatic imagery at approximately 3.98 cm per pixel. Pan-sharpened outputs can approach 2 cm per pixel with appropriate workflows.
This balance supports large-area agricultural surveys, environmental mapping, and vegetation analysis while maintaining manageable flight times and data volumes.
Radiometric stability across changing conditions
RedEdge-P is designed to maintain radiometric consistency across varying illumination environments. Integration with the Downwelling Light Sensor 2 and calibration reflectance panels allows datasets to be normalized during processing. This capability supports reliable comparison across dates, seasons, and sites, making the system well-suited for time-series analysis, machine learning workflows, and research programs that depend on consistent spectral outputs.
Supported aircraft and SkyPort mounting
- DJI Matrice 300 RTK: Supported via included SkyPort Kit
- DJI Matrice 350 RTK: Supported via included SkyPort Kit
- DJI Matrice 400: Not yet supported
- Direct SkyPort interface: Secure mechanical and electrical connection
- Stable mounting: Maintains consistent sensor alignment
- Reduced setup time on supported platforms
Industry use cases and operational scenarios
- Precision agriculture scouting: Identify variability zones for targeted field interventions.
- Vegetation classification: Differentiate plant types using narrowband spectral response mapping.
- Weed management planning: Detect weed signatures to prioritize treatment areas efficiently.
- Time-series monitoring: Normalize outputs across dates for dependable change detection.
- Coastal habitat surveys: Observe shoreline vegetation condition across repeatable missions.
- Watershed assessment: Monitor vegetation stress near canals and water infrastructure.
- Research plot analytics: Capture consistent multispectral data across structured trial sites.
- AI crop modeling: Build labeled datasets for analytics and machine learning workflows.
Compare: Altum-PT vs RedEdge-P
| Category | Altum-PT | RedEdge-P |
|---|---|---|
| Core focus | Multispectral + thermal + RGB in a single payload | High-resolution multispectral + RGB capture |
| Thermal capability | Radiometric FLIR LWIR, 320 × 256 | Not available (no thermal sensor) |
| Multispectral bands | 5 bands: Blue, Green, Red, Red Edge, NIR | 5 bands per sensor; up to 10 bands with a dual-camera configuration |
| RGB / panchromatic | 12 MP panchromatic sensor | 5.1 MP panchromatic output (pan-sharpened) |
| Multispectral GSD @120 m | 5.28 cm/pixel | 7.7 cm/pixel |
| Pan-sharpened spatial detail | 2.49 cm/pixel @120 m (≈1.25 cm/pixel @60 m) | ≈3.98 cm/pixel @120 m (≈2 cm with pan-sharpening) |
| Thermal GSD @120 m | 33.5 cm/pixel | N/A |
| Capture rate | Up to 2 images per second (all bands, RAW) | Up to 3 images per second (RAW) |
| Media / storage | CFexpress card | CFexpress card |
| Radiometric calibration | Integrated multispectral + thermal calibration | Multispectral calibration with dual calibration panels |
| Typical system weight | ≈577 g | ≈745 g (dual-sensor configuration) |
| Where it fits best | Irrigation diagnostics, water stress, soil moisture, thermal crop analysis | Vegetation indices, crop vigor, classification, time-series analysis |
Built for enterprise UAV operations
RedEdge-P with SkyPort Kit is designed for structured UAV programs that demand reliability and scalability. The SkyPort adapter simplifies deployment on supported DJI aircraft, while defined electrical interfaces and environmental tolerances support operation in diverse field conditions. For teams conducting repeated surveys and long-term monitoring, the system provides a dependable multispectral platform optimized for consistent data quality and analytical confidence.
RedEdge-P with SkyPort Kit offers a scalable multispectral solution for professionals focused on spectral insight and repeatable results.
Order from Dronefly today — the West Coast’s trusted enterprise UAV source for advanced multispectral payloads and professional integration support.
